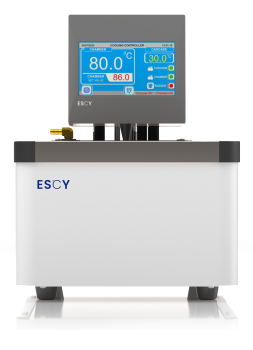

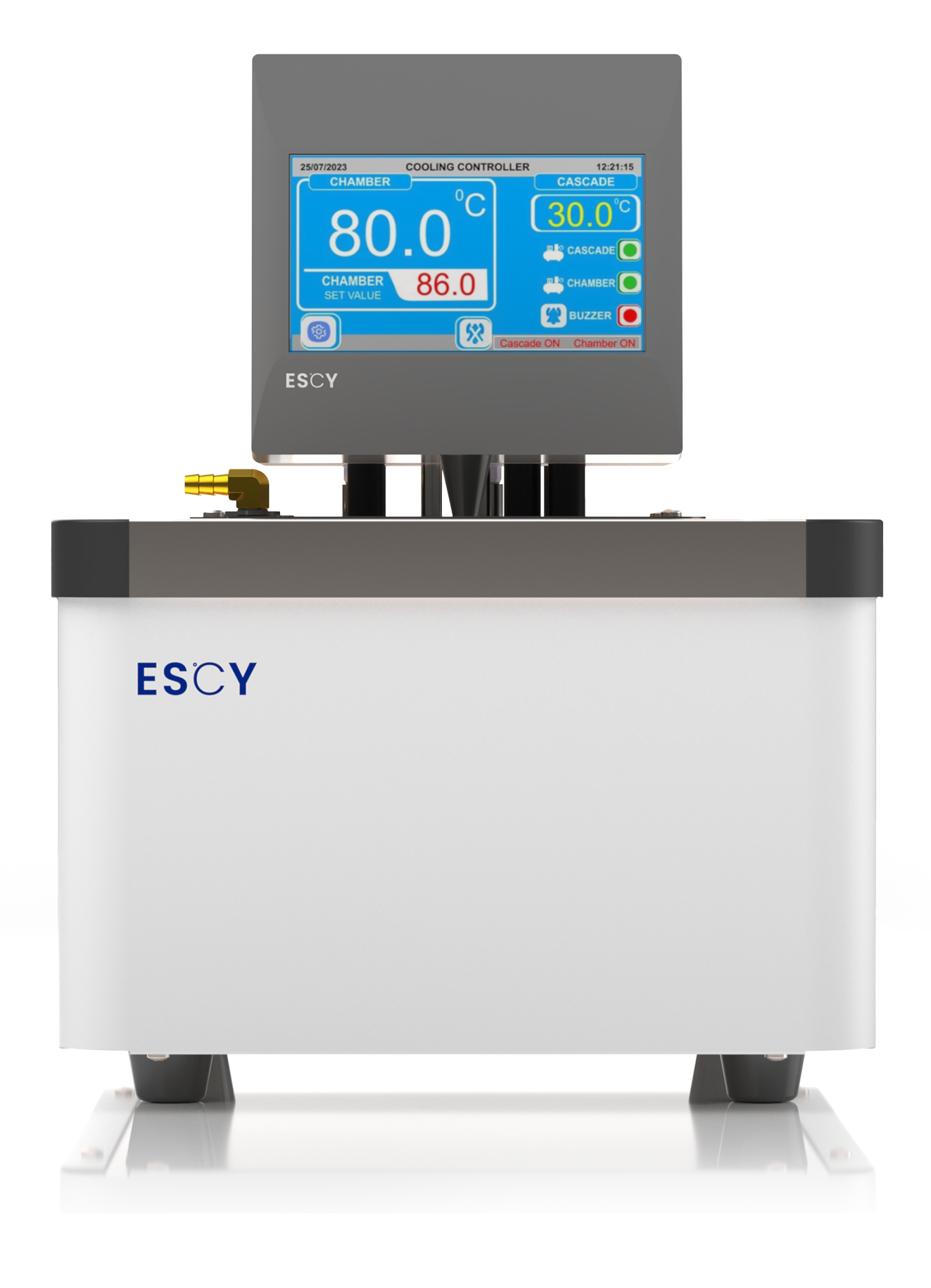

ESCY Max series heating circulators (MX models) are equipped with all the features of the PB models. Additionally, they feature multiple data logging options, TFT Colour display (Touchscreen) & Software.
- TFT coloured display with Touchscreen, multiple set points & advance safety features viz Low liquid level audio visual alarm, over temp cut off.
- Optional features are Multiple Ramp and Soak, External Temperature control &
- RS485 communication port.
- High quality stainless steel bath tanks with bath lids and drain tap.
- Models for internal and external circulation applications.
- Compact, space saving & easy operation.
- Selectable Display resolution of 0.1, 0.01.
- Integrated pump connection with nozzles.
- Powerful pump with variable speed.
- Temperature stability: ±0.01°C
- Pump pressure (mbar): 700
- Pump Flow rate Max (lpm): 16.
- No. of Set Points: 4.
- Low liquid level alarm.
- Over Temp Cut off.
- Variable speed control.
| Model | Temperature Range (°C) |
Bath Volume (L) |
Heater Capacity (kW) |
|---|---|---|---|
| H05MX0520A | RT+5 to 200 | 5 | 2 |
| H09MX0520A | RT+5 to 200 | 9 | 2 |
| H13MX0520A | RT+5 to 200 | 13 | 3 |
| H20MX0520A | RT+5 to 200 | 20 | 3 |
| H28MX0520A | RT+5 to 200 | 28 | 3.5 |
