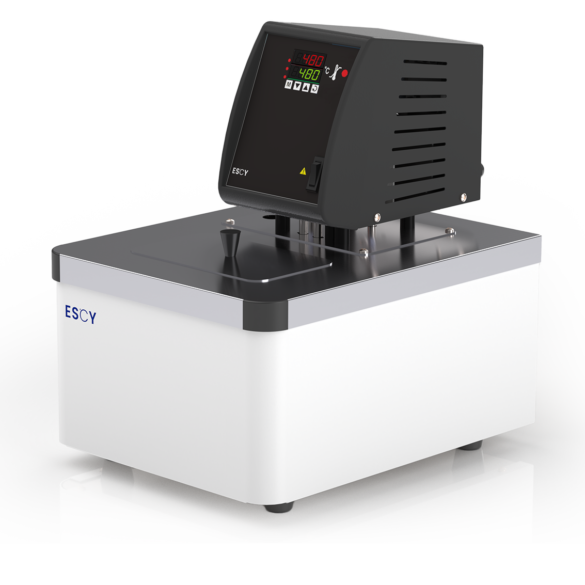

Heating Circulator | Prime Series (PS)

ESCY Heating circulators are suitable for both internal & external temperature control applications. Depending on the required temperature, rate of heating, and desired features, one can select from various models. Smaller objects can be inserted directly into the bath at the same time.

  • High quality stainless steel bath tanks with bath lids and drain tap.
  • Microprocessor based PID Controller with Dual LED Display.
  • Models for internal and external circulation applications.
  • Integrated pump connection with nozzles.
  • Compact and space saving.
  • Easy operation.
  • Temperature stability ±0.03°C
Immersion Circulator
Model Temperature Range (°C) Bath Volume (L) Heater Capacity (kW) Pump Pressure (mbar) Pump Flow Rate Max (lpm) No. of Set Points Low Liquid Level Alarm Over Temp Cut Off Variable Speed Control RS485 Comm External Temperature Control Ramp & Soak Download Datasheet
H05PS0510A RT+5 to 100 5 1 300 10 4 ×
H09PS0510A RT+5 to 100 9 2 300 10 4 × ×
H13PS0510A RT+5 to 100 13 2 300 10 4 × ×
H20PS0510A RT+5 to 100 20 2 300 10 4 × ×

● - Standard   ○ - Optional   × - Not Available
