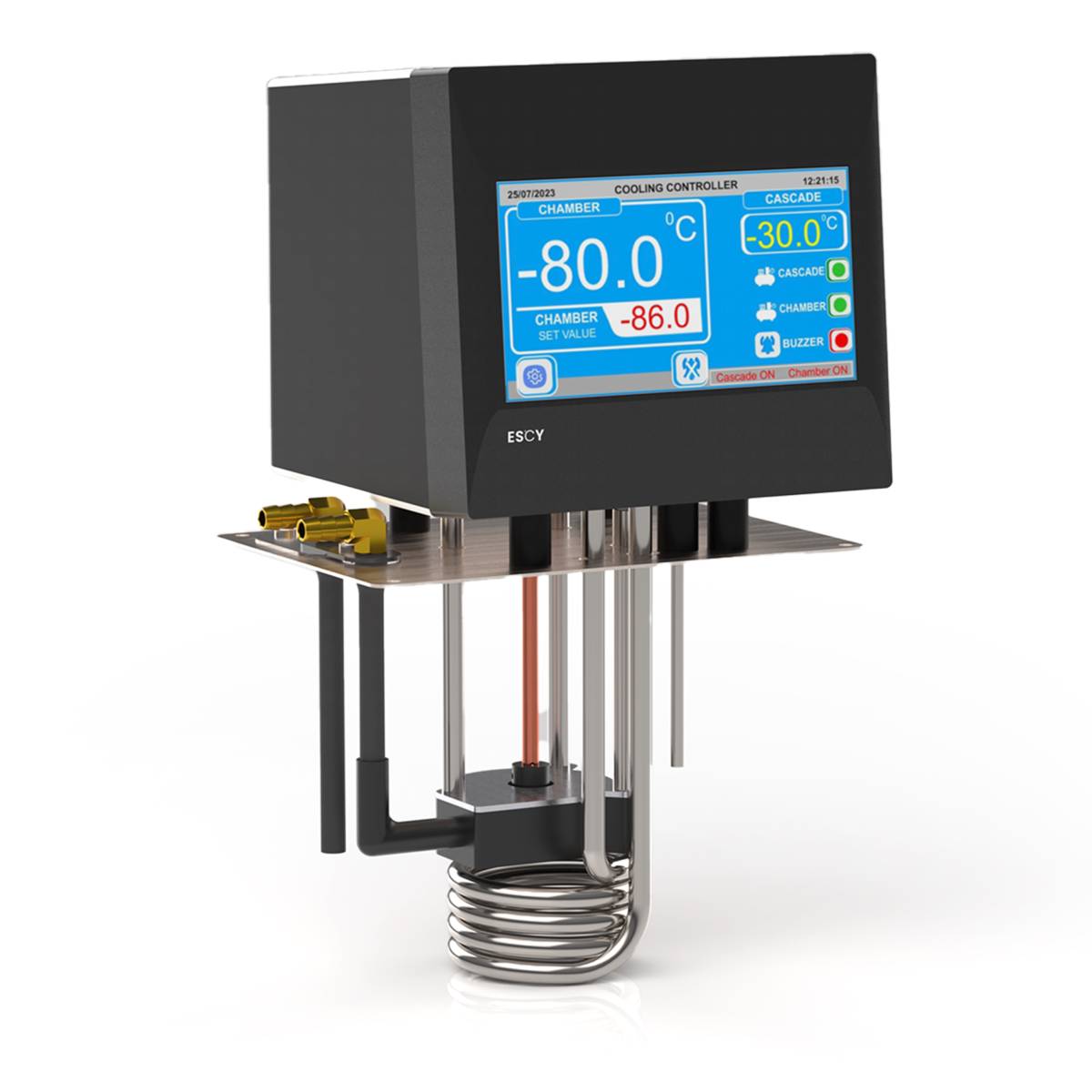

ESCY Immersion circulators precisely control temperature in baths or tanks of up to 55 litres. The circulator comes with a clamp, facilitating easy installation onto an existing tank with a thickness of 25mm. All parts immersed in the bath liquid are made of high-quality stainless steel or synthetic material.
| Model | Basic | PRIME (PS) | PRIME (PB) |
|---|---|---|---|
| Model Code | 100BC0510A | 100PS0510A | 100PB0510A |
| Type of Control | PID Stand Alone | PID Integrated | PID Integrated |
| Working Temperature Range (°C) | Rt+5 to 100 | Rt+5 to 100 | Rt+5 to 200 |
| Temperature Stability (°C) | +/- 0.03 | +/- 0.03 | +/- 0.03 |
| Number of Set Points | 1 | 4 | 4 |
| Circulation Pressure (mbar) | 300 | 300 | 700 |
| Circulation flow rate, max (l/min) | 8/10 | 8/10 | 8/16 |
| Heater Capacity (kW) | 1 or 2 | 1 or 2 | 2 or 3 |
| Low liquid level alarm | × | ● | ● |
| Over temperature cut off | × | ● | ● |
| RS 485 Communication | × | ○ | ○ |
| External temperature control | × | ○ | ○ |
| Programmable Ramp and Soak | × | ○ | ○ |
| Number of programs | × | 10 | 10 |
● - Standard ○ - Optional × - Not Available
