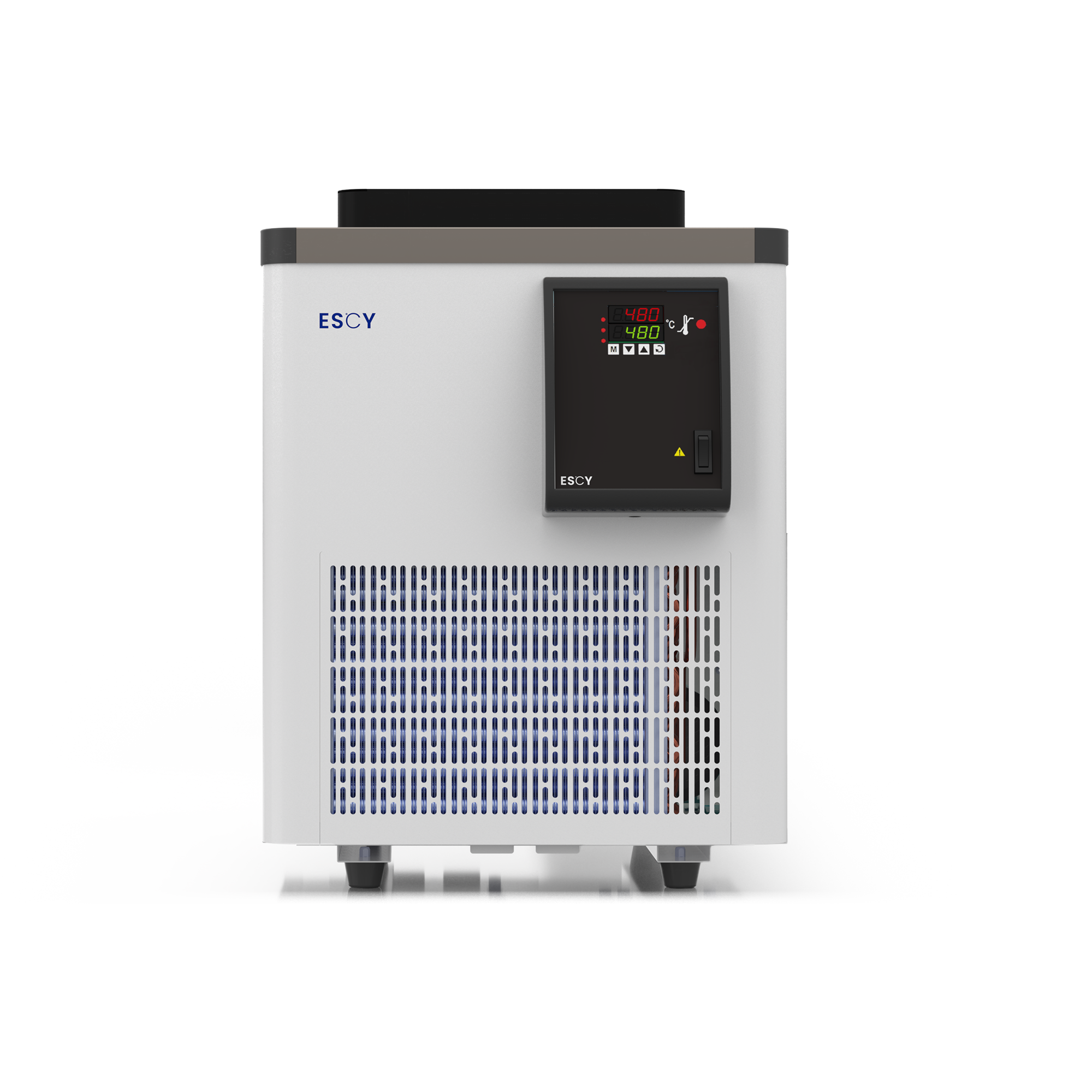

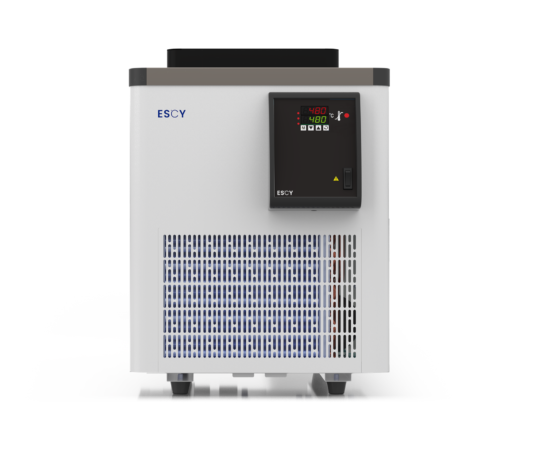

ESCY Prime series recirculating chillers (PS models) come equipped with advanced control & safety features and integrated controller.
- Accurate Temperature control.
- Robust & powerful cooling.
- Small Filling port.
- Safety features viz. Low liquid level audio visual alarm, over temp cut off.
- External Temperature control & RS485 communication port, are optional features.
- Provided with positive displacement pump
(max pressure 4 bar & flow rates 6, 12 or 25 lpm). - Models with fixed Tank capacities (5, 9 litres) or Reservoir with Brazed Plate Heat
- Exchanger (BPHE Technology).
- Temperature stability: ± 0.03°C / 0.5°C
- Temperature control PID l On/Off
- Low liquid level alarm.
- No. of Set Points: 1.
- Over Temp Cut off.
- Pump Pressure (bar): 4
| Model | Temperature Range (°C) | BathVolume(L) | Cooling Capacity@ 20°C (kW) | Pump Flow Rate Max (lpm) | RS485 Comm | External Temprature Control |
|---|---|---|---|---|---|---|
| C05PS0510A | +5 to RT | 5 | 1 | 6 | ○ | ○ |
| C09PS0515A | +5 to RT | 9 | 1.5 | 6 | ○ | ○ |
| C09PS0520A | +5 to RT | 9 | 2 | 6 | ○ | ○ |
| C09PS0528A | +5 to RT | 9 | 2.8 | 6 | ○ | ○ |
| C09PS0550A | +5 to RT | 9 | 5 | 6 | ○ | ○ |
| C09PS0570A | +5 to RT | 9 | 7 | 6 | ○ | ○ |
Pump flow rates 12 & 25 lpm available on request.
○ - Optional
