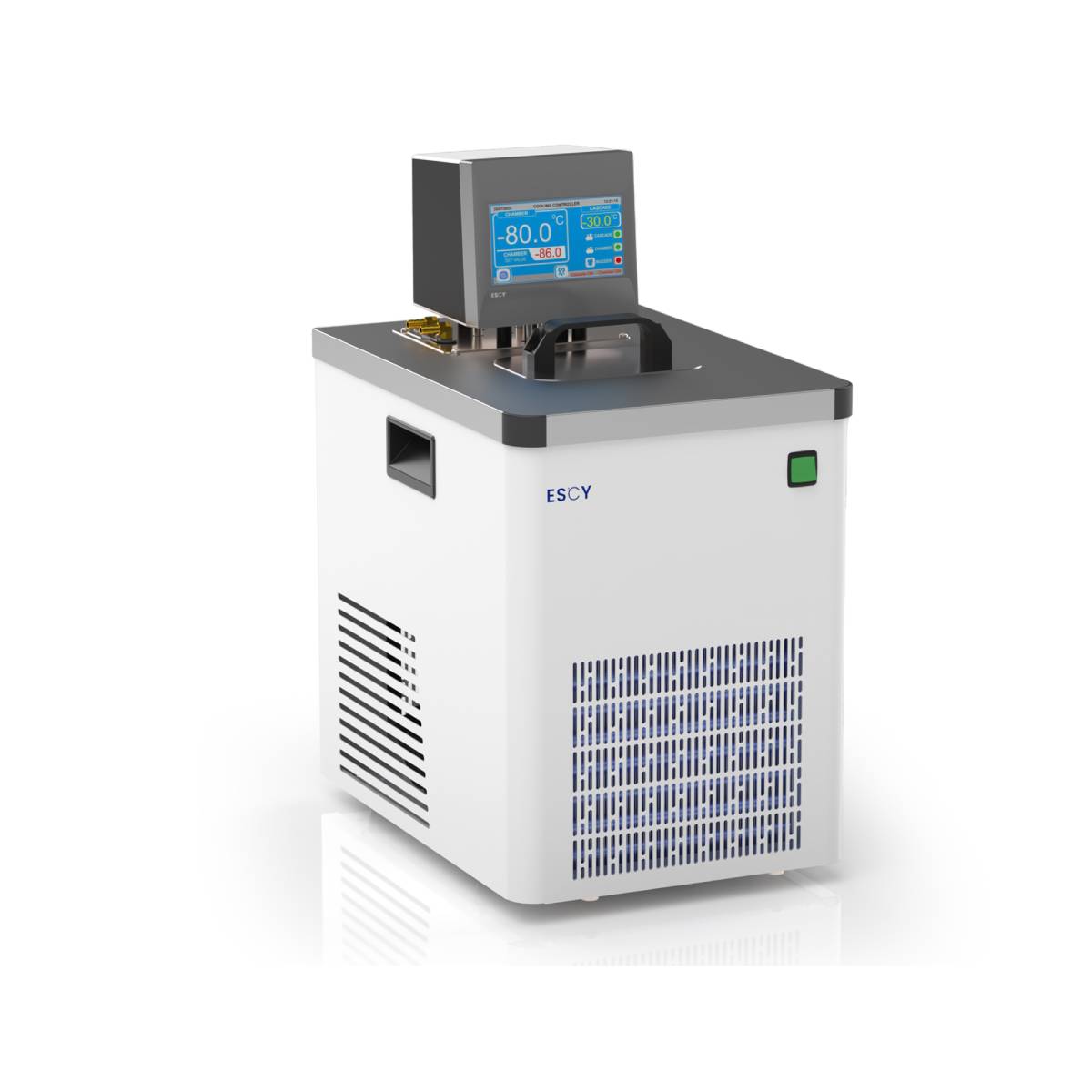

ESCY Max series refrigerated circulators (MX models)are equipped with all the features of the PB models. Additionally, they feature multiple data logging options, TFT Colour display (Touchscreen) & Software.
- TFT coloured display with Touchscreen, multiple set points & advance safety features viz Low liquid level audio visual alarm, over temp cut off.
- Optional features are Multiple Ramp and Soak, External Temperature control & RS485 communication port.
- High quality stainless steel bath tanks with bath lids and drain tap.
- Compact, space saving, easy operation & Robust Cooling.
- Models for internal and external circulation applications
- Selectable Display resolution of 0.1, 0.01.
- Integrated pump connection with nozzles.
- Powerful pump with variable speed.
- Temperature stability: ±0.01°C
- Pump pressure (mbar): 700
- Pump Flow rate Max (lpm): 16.
- No. of Set Points: 4.
- Low liquid level alarm.
- Over Temp Cut off.
- Variable speed control.
| Model | Temperature Range (°C) | Bath Volume (L) | Heater Capacity (kW) | Cooling Capacity@ 20°C (kW) | RS485 Comm | External Temperature Control | Ramp and Soak |
|---|---|---|---|---|---|---|---|
| R09MX1010A | -10 to +100 | 9 | 2 | 1 | ○ | ○ | ○ |
| R09MX2010A | -20 to +100 | 9 | 2 | 0.8 | ○ | ○ | ○ |
| R09MX2510A | -25 to +100 | 9 | 2 | 0.8 | ○ | ○ | ○ |
| R09MX3010A | -30 to +100 | 9 | 2 | 0.7 | ○ | ○ | ○ |
| R09MX4010A | -40 to +100 | 9 | 2 | 0.63 | ○ | ○ | ○ |
| R13MX1010A | -10 to +100 | 13 | 2 | 1 | ○ | ○ | ○ |
| R13MX2010A | -20 to +100 | 13 | 2 | 0.8 | ○ | ○ | ○ |
| R13MX6005A | -60 to +50 | 13 | 2 | 0.6 | ○ | ○ | ○ |
| R13MX8005A | -80 to +50 | 13 | 2 | 0.6 | ○ | ○ | ○ |
| R20MX1010A | -10 to +100 | 20 | 2 | 0.8 | ○ | ○ | ○ |
Temperatures up to 200°C are available on request.
○ - Optional
