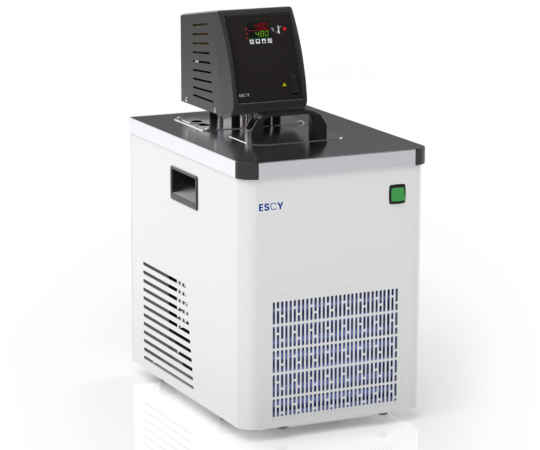

Refrigerated Circulator | Prime Series (PS)

ESCY Prime series refrigerated circulators (PS models) come equipped with advanced control features, including multiple set points, various safety features, and data logging capabilities.

Download Brochure
  • Microprocessor based PID controller with Dual LED Display, multiple set points & advance safety features viz Low liquid level audio visual alarm, over temp cut off.
  • Optional features are Multiple Ramp and Soak, External Temperature control & RS485 communication port.
  • High quality stainless steel bath tanks with bath lids and drain tap.
  • Compact, space saving, easy operation & Robust Cooling.
  • Models for internal and external circulation applications.
  • Integrated pump connection with nozzles.
  • Temperature stability: ±0.03°C
  • Pump pressure (mbar): 300
  • Pump Flow rate Max (lpm): 12
  • No. of Set Points: 4
  • Low liquid level alarm
  • Over Temp Cut off.
Immersion Circulator
Model Temperature Range (°C) Bath Volume (L) Heater Capacity (kW) Cooling Capacity@ 20°C (kW) RS485 Comm External Temperature Control Ramp and Soak Download Datasheet
R05PS1010A -10 to +100 5 1 0.3 ○ ○ ○
R05PS2010A -20 to +100 5 1 0.3 ○ ○ ○
R05PS2510A -25 to +100 5 1 0.6 ○ ○ ○
R09PS1010A -10 to +100 9 2 1 ○ ○ ○
R09PS2010A -20 to +100 9 2 0.8 ○ ○ ○
R09PS2510A -25 to +100 9 2 0.8 ○ ○ ○
R09PS3010A -30 to +100 9 2 0.7 ○ ○ ○
R13PS1010A -10 to +100 13 2 1 ○ ○ ○
R13PS2010A -20 to +100 13 2 0.8 ○ ○ ○
R20PS1010A -10 to +100 20 2 0.8 ○ ○ ○

○ - Optional
